LEDiL Optics - Yuav ua li cas kom tau txais teeb pom kev zoo thiab ib puag ncig tsis muaj menyuam!

Daim ntawv thov kev kho qhov muag hauv Horticultural Teeb pom kev zoo thiab UVC Disinfection

Nyob rau hauv niaj hnub kev ua liaj ua teb thiab biosafety, precision kho qhov muag tshuab tsis tsuas yog muab kev txhawb nqa tseem ceeb rau horticultural teeb pom kev zoo tab sis kuj txuas mus rau cov ntawv tshwj xeeb xws li UVC tshuaj tua kab mob. Cov hauv qab no piav qhia txog cov txheej txheem tseem ceeb, cov yam ntxwv ntawm cov khoom, thiab cov kev daws teeb meem:



[Core Optical Parameter System]

• Photosynthetically Active Radiation (PAR)
• PPF (Photosynthetic Photon Flux): Tag nrho cov photosynthetic photon tso zis ntawm lub teeb
• PPFD (Photosynthetic Photon Flux Density): Photon kev pab them nqi ib cheeb tsam





[Khoom noj khoom haus teeb pom kev zoo tsim lub moj khaum]

Cov nroj tsuag loj hlob zoo heev yog tsim los ntawm kev sib koom ua ke ntawm tag nrho lawv cov khoom.



[LED Technology Advantages and Challenges]

Qhov zoo:

• Lub neej ntev heev (90% kev ua tau zoo ntawm 25,000 teev, 85% ntawm 50,000 teev)
• 30% qis zog noj, customizable lub teeb spectrum
• Txhim kho PPFD tsom lub peev xwm los ntawm kev tsim kho qhov muag



Kev sib tw:

• Tus nqi pib 2-5 npaug ntawm HID
• Kev cia siab rau kev tsim kho qhov muag kom them nyiaj rau thawj lub teeb pom kev siv zog



[Ntau-Scenario Teeb pom kev zoo daws teeb meem]

Tsev cog khoom Sab saum toj teeb pom kev zoo

Kev sib tw: Spectral stability, siab zog yuav tsum tau

Kev xaiv teeb pom kev zoo: dav nqaj (120 degree), nruab nrab nqaj (90 degree), nqaim beam (60 degree)

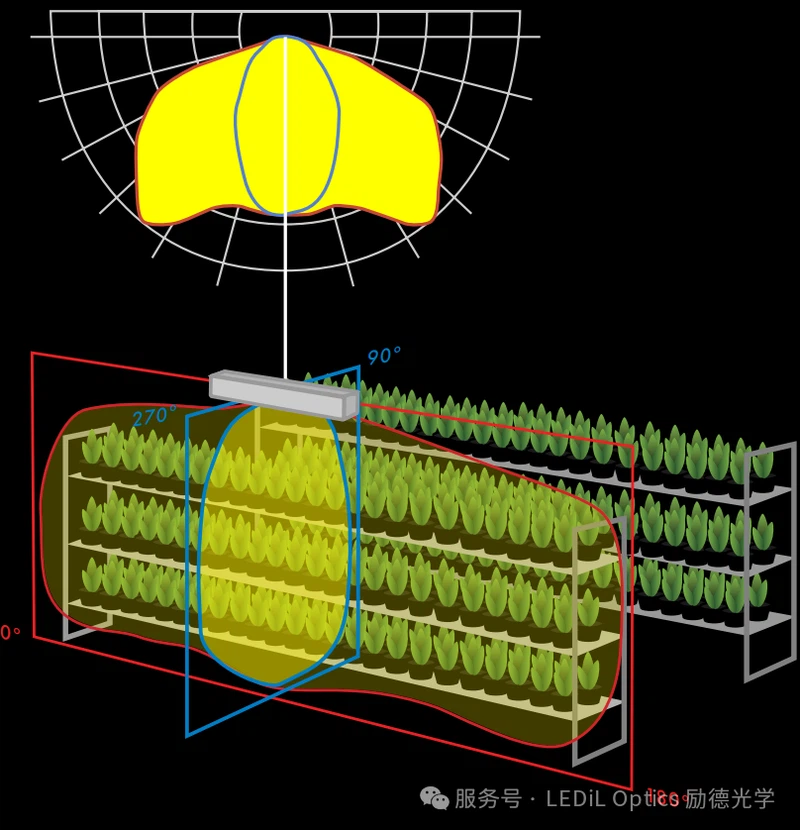

Vertical Farm Teeb pom kev zoo

Kev sib tw: Ntxoov ntxoo, thermal tswj lub teeb faib kev xaiv: Ultra-Wide Beam (150 degree), Dav Beam (120 degree)





Intracanopy Illumination
Kev sib tw: PPFD Uniformity, Spectral Matching
Kev xaiv lub teeb pom kev zoo: Asymmetric Light Distribution, Elliptical Beam





[Tus Neeg Sawv Cev Optical Khoom thiab Daim Ntawv Thov]


DAHLIA Series
High -kev ua tau zoo linear platform nrog PPFD uniformity ntawm 95.3%. Tsim tshwj xeeb rau 3535-nti LEDs, sib xws nrog Osram, Lumileds, thiab lwm yam teeb pom kev zoo.



VIOLET Series
Daim Ntawv Thov Kev Ua Haujlwm: Dual-Function UVC Disinfection thiab Horticultural Lighting. Ua los ntawm siab -transmittance UV-C silicone, lub teeb pom kev zoo yog ob npaug piv rau quartz iav. Tau tshaj Seoul Viosys thiab Nichia UVC LEDs, txhawb kev sib koom ua ke ntau- pawg.





FLORENCE-3R-IP Series

• Peb -kab kab tiv thaiv lo ntsiab muag (Zhaga Phau Ntawv 7 ua raws)
• Tsim los rau qhov chaw ntub thiab plua plav, muab kev tiv thaiv zoo heev





IP-24 (STRADA & HB Series)

• Cov khoom tsim qauv tsim tsev neeg, suav nrog 2x2, IP-2x6, thiab IP-24 series.
• Tsim los rau txoj kev thiab kev lag luam teeb pom kev zoo, kuj haum rau ntau yam kev siv.
• Ua kom muaj kev ntseeg siab nyob rau hauv ib puag ncig hnyav nrog kev ntsuas siab - tiv thaiv





PETUNIA

• 29.5 × 46.5mm ultra{2}}thin ntom lens array
• 12x1 optical lens|Tsim rau horticultural teeb pom kev zoo thiab 3535 loj LED pob





VIRPI

• 75 × 75mm, 25x1 multi-lens array
• Tsim los rau kev tsom teeb pom kev thiab taug qab teeb pom kev|Tau tshaj 3535 loj LED pob





MX/S (STRADA & HB)
90 × 90mm tiv thaiv lens array
▸ MX qauv: Tau tshaj 7070 loj LED pob
▸ MXS Model: Tau tshaj COB pob hauv qab 9 hli
▸ 8MXS Model: Haum rau cov pob khoom loj 5050
Tag nrho cov series yog sib xws nrog COB, 5050/7070 tej pob khoom, thiab txuas mus rau cov ntawv thov kev lag luam







STELLA
Ø90mm tiv thaiv silicone lens
Haum rau txoj kev teeb pom kev zoo, dav - thaj chaw teeb pom kev zoo, thiab siab - teeb pom kev zoo
Txhawb COB pob nrog lub teeb -emitting nto (LES) hauv qab 30 hli





[Technical Verification thiab Performance Data]
DAHLIA: Ua tiav qhov nruab nrab PPFD ntawm 38μmol / m² thiab 95.3% uniformity tshaj 6.2m dav cog
VIOLET: 117% nce hauv irradiance thaum ua ke nrog WICOP-LEDs (258 vs. 119mm) mW/m²), nrog ib tug uniformity ntawm 0.94









[Optical Design Empowers System Optimization]

Precision light distribution technology enables:

• 40% kev txhim kho hauv qhov chaw tsom xam efficiency
• 30% txo qis hauv LED module siv
• 25% kev txhim kho hauv PPFD nrog qis zog siv





Los ntawm kev tswj cov photon meej rau horticultural teeb pom kev zoo rau kev xa hluav taws xob zoo rau UVC tshuaj tua kab mob, kev tsim kho qhov muag tau txuas ntxiv mus thawb cov ciam teb ntawm kev ua liaj ua teb teeb pom kev zoo thiab biosafety technology los ntawm optimizing photon tis efficiency thiab nce kev sib koom ua ke. Xaiv cov khoom siv kho qhov muag zoo yog lub tswv yim tseem ceeb rau kev ua tiav ROI siab thiab kev ua haujlwm ruaj khov.
