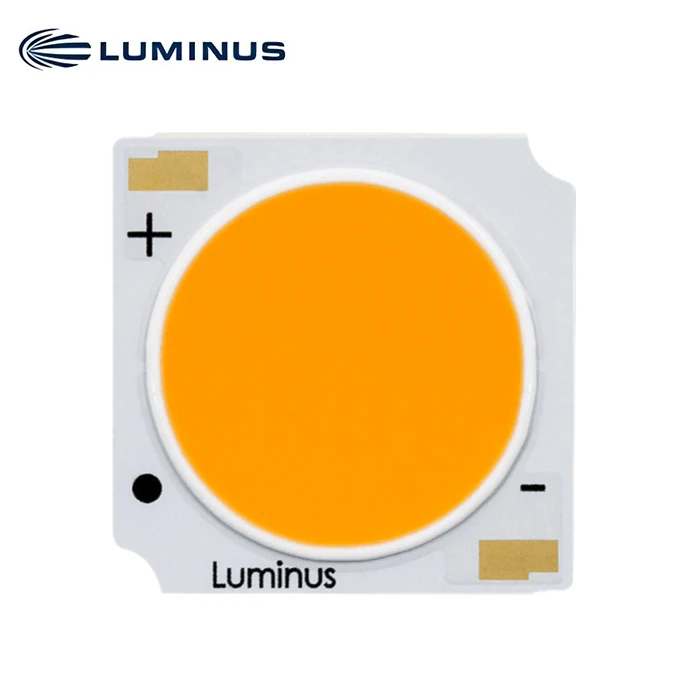

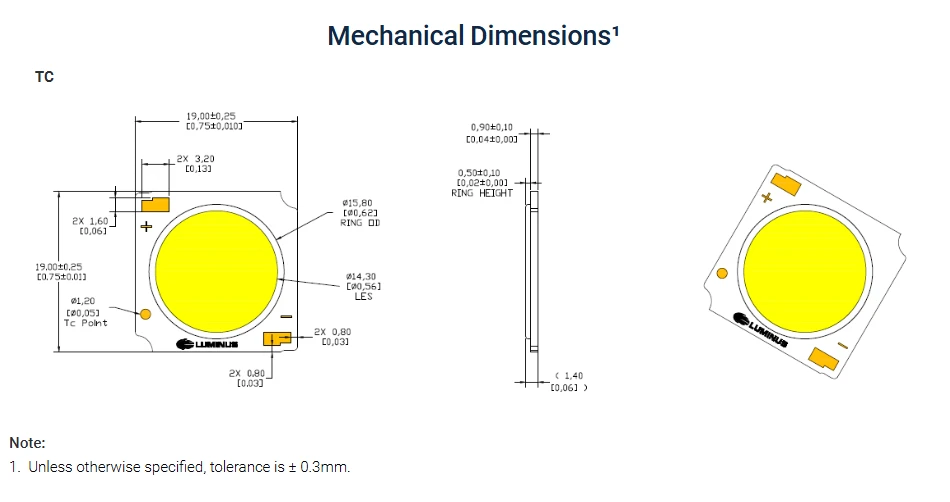

Tiam 6 CGM-14 COB Arrays Dawb Led
Nta
• High Lumen tsim tawm thiab efficacy feem
• Tshaj 4285 LM, 143 LPW @ 3000K, 90RI, TJCRI, TJCRI, TJ= 85 degree
• CCT ntau yam 1900K, 2200K, 2400K, 27000k, 3500K, 4000K, 5000K thiab 6500k
• 3 SDCM thiab 2 SDCM xim Binning txheem
• Zoo heev optical emission cov uniformity thiab xim dhau lub kaum sib npaug
• Cov thermal Thermal conductivity rau kev niaj hnub ua cua sov kis
Cov Ntawv Thov
• Cov ntsiab muag / taug qab cov teeb
• OVLARLS
• Khw teeb pom kev zoo
• Kev tu ncua teeb pom kev zoo
• Cov kws ua txuj ci thiab tshwj xeeb
• Kev teeb txoj kev txoj kev
• Chaw nres tsheb thiab thaj chaw teeb pom kev zoo
• Qhov teeb pom kev teeb pom kev
Cia Part Part tus lej - TLTER
Cov ntawv no piav qhia cov khoom lag luam nrog cov tshuaj tua kab mob flux thiab tsawg kawg nkaus flux ntsuas ntawm 900 MA thiab teev ntawm= 85 degree. Qhov tseem ceeb ntawm 25℃tau raug suav thiab qhia rau kev siv xwb.
|
Yam tsawg kawg - Lub tsheb loj |
CCC |
Luminous flux¹ |
Xa cov lej naj npawb |
|||
|
Raug flux (85 degree) |
Tsawg li tsawg tau Flux (85 degree) |
Suav Zoo li ib txwm Flux (25 degree) |
3-Kauj Ruam MacAdam ellipse |
Thib 2-Kauj Ruam MacAdam ellipse |
||
|
90 |
2200K |
3525 |
3275 |
3875 |
CGM-14-22-90-36-TC60-F7-3 |
CGM-14-22-90-36-TC60-F7-2 |
|
90 |
2400K |
3830 |
3560 |
4210 |
CGM-14-24-90-36-TC60-F7-3 |
CGM-14-24-90-36-TC60-F7-2 |
|
80 |
2700K |
4650 |
4325 |
5115 |
CGM-14-27-80-36-TC60-F7-3 |
CGM-14-27-80-36-TC60-F7-2 |
|
90 |
4130 |
3840 |
4545 |
CGM-14-27-90-36-TC60-F7-3 |
CGM-14-27-90-36-TC60-F7-2 |
|
|
95 |
3460 |
3220 |
3805 |
CGM-14-27-95-36-TC60-F7-3 |
CGM-14-27-95-36-TC60-F7-2 |
|
|
80 |
3000K |
4910 |
4565 |
5400 |
CGM-14-30-80-36-TC60-F7-3 |
CGM-14-30-80-36-TC60-F7-2 |
|
90 |
4285 |
3985 |
4715 |
CGM-14-30-90-36-TC60-F7-3 |
CGM-14-30-90-36-TC60-F7-2 |
|
|
95 |
3650 |
3395 |
4015 |
CGM-14-30-95-36-TC60-F7-3 |
CGM-14-30-95-36-TC60-F7-2 |
|
|
80 |
3500K |
5000 |
4650 |
5500 |
CGM-14-35-80-36-TC60-F7-3 |
CGM-14-35-80-36-TC60-F7-2 |
|
90 |
4395 |
4085 |
4830 |
CGM-14-35-90-36-TC60-F7-3 |
CGM-14-35-90-36-TC60-F7-2 |
|
|
95 |
3810 |
3545 |
4195 |
CGM-14-35-95-36-TC60-F7-3 |
CGM-14-35-95-36-TC60-F7-2 |
|
|
80 |
4000K |
5110 |
4755 |
5620 |
CGM-14-40-80-36-TC60-F7-3 |
CGM-14-40-80-36-TC60-F7-2 |
|
90 |
4495 |
4180 |
4940 |
CGM-14-40-90-36-TC60-F7-3 |
CGM-14-40-90-36-TC60-F7-2 |
|
|
95 |
4020 |
3735 |
4420 |
CGM-14-40-95-36-TC60-F7-3 |
CGM-14-40-95-36-TC60-F7-2 |
|
|
80 |
5000K |
5195 |
4830 |
5710 |
CGM-14-50-80-36-TC60-F7-3 |
CGM-14-50-80-36-TC60-F7-2 |
|
90 |
4485 |
4170 |
4930 |
CGM-14-505090-36-TC60-F7-3 |
CGM-14-50-90-36-TC60-F7-2 |
|
|
95 |
4210 |
3920 |
4635 |
CGM-14-5050-36-TC60-F7-3 |
CGM-14-50-95-36-TC60-F7-2 |
|
|
80 |
6500K |
5035 |
4685 |
5540 |
CGM-14-65-80-36-TC60-F7-3 |
CGM-14-65-80-36-TC60-F7-2 |
|
90 |
4500 |
4185 |
4950 |
CGM-14-65-90-36-TC60-F7-3 |
CGM-14-65-90-36-TC60-F7-2 |
|
Xaj cov lej - tc62 sensus (bbbl)
Cov ntawv no piav qhia cov khoom lag luam nrog cov tshuaj tua kab mob flux thiab tsawg kawg nkaus flux ntsuas ntawm 900 MA thiab teev ntawm= 85 degree. Qhov tseem ceeb ntawm 25℃tau raug suav thiab qhia rau kev siv xwb.
|
Yam tsawg kawg - Lub tsheb loj |
CCC |
Luminous flux¹ |
Xa cov lej naj npawb |
|||
|
Raug flux (85 degree) |
Tsawg li tsawg tau Flux (85 degree) |
Suav Zoo li ib txwm Flux (25 degree) |
3-Kauj Ruam MacAdam ellipse |
Thib 2-Kauj Ruam MacAdam ellipse |
||
|
90 |
2700K |
3930 |
3655 |
4325 |
CGM-14-27-90-36-tc62-f7-3 |
CGM-14-27-90-36-tc62-f7-2 |
|
3000K |
4170 |
3880 |
4590 |
CGM-14-30-90-36-tc62-f7-3 |
CGM-14-30-90-36-tc62-f7-2 |
|
|
3500K |
4275 |
3975 |
4705 |
CGM-14-35-90-36-tc62-f7-3 |
CGM-14-35-90-36-tc62-f7-2 |
|
Xaj cov lej - tc68 sensus (bbbl)
Cov ntawv no piav qhia cov khoom lag luam nrog cov tshuaj tua kab mob flux thiab tsawg kawg nkaus flux ntsuas ntawm 900 MA thiab teev ntawm= 85 degree. Qhov tseem ceeb ntawm 25℃tau raug suav thiab qhia rau kev siv xwb.
|
Yam tsawg kawg - Lub tsheb loj |
CCC |
Luminous flux¹ |
Xa cov lej naj npawb |
|||
|
Raug flux (85 degree) |
Tsawg li tsawg tau Flux (85 degree) |
Suav Zoo li ib txwm Flux (25 degree) |
3-Kauj Ruam MacAdam ellipse |
Thib 2-Kauj Ruam MacAdam ellipse |
||
|
70 |
1900K |
2905 |
2700 |
3195 |
CGM-14-19-70-36-tc68-f7-3 |
CGM-14-19-70-36-tc68-f7-2 |
|
3000K |
3050 |
2835 |
3355 |
CGM-14-30-70-36-tc68-f7-3 |
CGM-14-30-70-36-tc68-f7-2 |
|
CCT, CRI thiab R9 qhov tseem ceeb
|
Correlated xim kub |
Xx tus nqi |
Cri |
R91 |
|
1900K, 3000K |
70 |
>70 |
- |
|
2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
80 |
>80 |
>0 |
|
2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
90 |
>90 |
>50 |
|
2700K, 3000K |
95 |
>95 |
>80 |
|
3500K, 4000K, 5000K |
>70 |
Tsis muaj kev ntsuas ntau
|
Chaw ua uas tsis tau haus |
Lub cim |
Tus nqi |
Ib yam |
|
|
Rau pem hauv ntej |
Zoo li ib txwm |
Yog tias hom |
900 |
ma |
|
Ntau tshaj plaws |
Yog tias Max |
2200 |
||
|
Lub zog tsis haum |
Zoo li ib txwm |
Pd xov |
30 |
W |
|
Ntau tshaj plaws |
Pd max |
83.1 |
||
|
Kev Ua Haujlwm Cov Ntaub Ntawv Kub |
Ntau tshaj plaws |
Tc |
120 |
tiv kis |
|
Kub ntxhov |
Ntau tshaj plaws |
T j |
140 |
tiv kis |
Cov yam ntxwv 16,2,3,3
|
Chaw ua uas tsis tau haus |
Lub cim |
Tus nqi |
Ib yam |
|
|
Teeb Pom Kev Hla Deg |
Tus kav |
14.5 |
lub hli |
|
|
Tom ntej voltage |
Tsawg li tsawg tau |
Vf min |
31.6 |
V |
|
Zoo li ib txwm |
VF |
33.4 |
||
|
Ntau tshaj plaws |
Vf max |
37.8 |
||
|
Thermal kuj (junction - rau - rooj plaub) |
Rth j - c |
0.25 |
Degree / w |
|
|
Saib lub kaum ntse ntse ntse |
2θ1/2 |
120 |
tiv kis |
|
